Our REGULUS company is China professional Manufacturer.
The PP PE Waste Plastic Recycle Granulator Machine is a three in one recycling machine designed for low density plastic articles. It could provide the excellent re-pelletizing and recycling solution for film, raffia, filament,woven bag and nonwoven fabric and other consumed / post soft or rigid plastic.
OurPlastic Recycle Granulator Machine/pellet making machine has a wide application in PE, PP, CPP, BOPP, PS, PPS, EPS, ABS, PA, PLA, PET waste plastic materials recycling field.
The pictures below show the raw plastic and the plastic pellets produced by our pelletizing line:
RAW MATERIAL | FINAL PRODUCT |

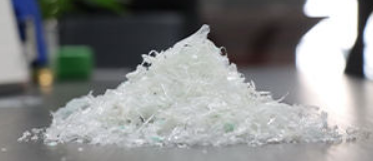

Plastic film

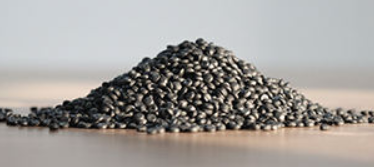

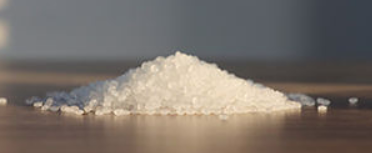

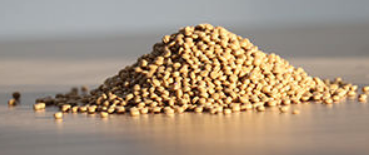

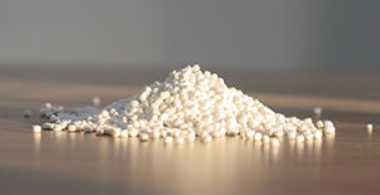

| Granules
|

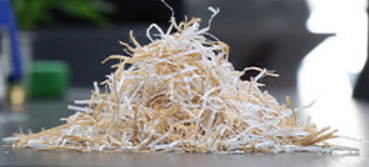

Woven fabric
| Granules
|
Rigid flakes
| Granules
|

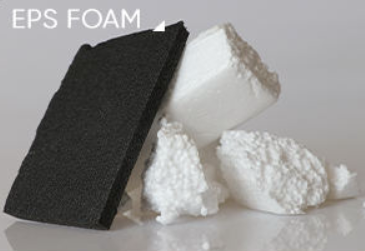

EPS foam
| Granules
|
Non-woven fabric
| Granules
|

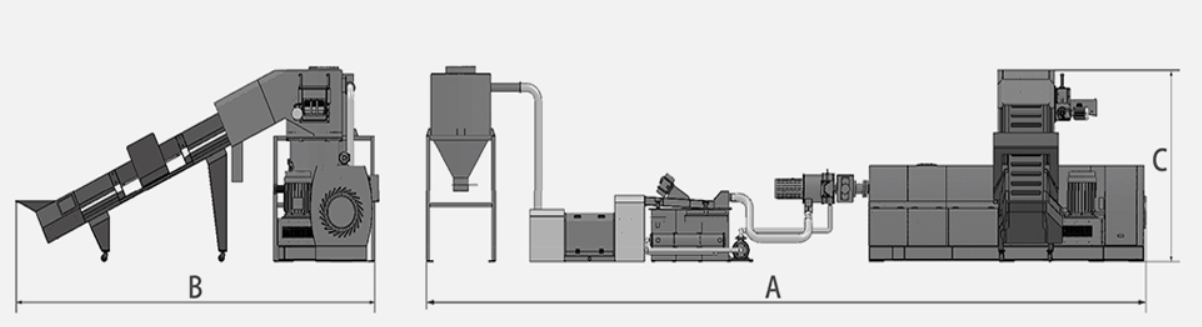

Flow chart of three in one pelletizing recycling machine
Details introduction of three in one pelletizing recycling machine
Feeder Belt conveyor for plastic scrap feeding automatically, Feeding speed adjustable by inverter controller according to the feeding amout. | |
Compactor The plastic material got cutting, mixing and preheating in compactor uniformly, to ensure the material heated and dried effectively. | |
Extrusion HiIgh efficiency barrel and screw used for extruding excellent plasticizing result and high output capacity. Adopt high wear resistant alloy material to ensure 1.5 times service life of normal one. | |
Degassing Force double vacuum degassing system to get rid of the low molecular, moisture and printing ink effectively, make sure high quality output plastic pellets. | |
Filter Plate type, piston type, back flush type and automatic self-cleaning type filter, you have different choice according to impurity contents in material. | |
Pelletizer New advanced technology water ring pelletizer Cutting speed of pelletizer controlled automatically by PLC according to the pressure of die head , which could achieve the uniform size for output pellets | |
Dryer Vibration dryer combined with horizontal type centrifugal dryer to get well dried plastic granules. | |
Main model
Model | REGULUS-SFS | ||
Fit for | recycling plastic PP, PE, HDPE, LDPE, LLDPE, PA66, PC, PET, OPP, BOPP, CPP, BOPET, ABS, PBAT, PLA and etc. | ||
Final product | Plastic pellets, plastic granules | ||
Electric elements | Siemens, Schneider, ABB, Omron, etc | ||
Model | Screw diameter(mm) | L/D | Output(kg/h) |
SFS85 | 85 | 36 | 120-200 |
SFS100 | 100 | 36 | 200-400 |
SFS130 | 130 | 36 | 400-650 |
SFS160 | 160 | 36 | 600-800 |
SFS180 | 180 | 36 | 800-1200 |
CE certification available.
Larger, more powerful models available based on your request.
