ENGLISHSqueezer and Pelletizer

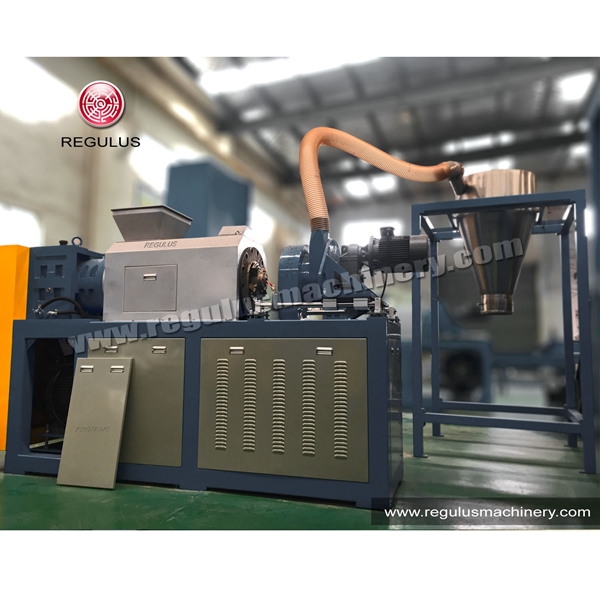

Usages of Plastic PP bags squeezing dryer and compactor
The plastic squeezing dryer and compactor is especially suitable for soft plastics dewatering and drying, such as
films and woven bags. The plastic squeezing dryer and compactor is developped based on the film squeezing
dryer machine. This machine has both drying and compacting function. The plastic squeezing dryer and
compactor can be used after plastic washing line. And it can also used to dry wet plastic separately.
After washing/cleaning the waste plastic film, bags, the plastic film, bags moisture is usually retain more than 30%.
So our team developed a squeezer to meet customers' needs. Through this machine, water and volume of the
materials can be squeezed to increase the quality of the pellets and the efficiency of the extruders.
Proucts Features：

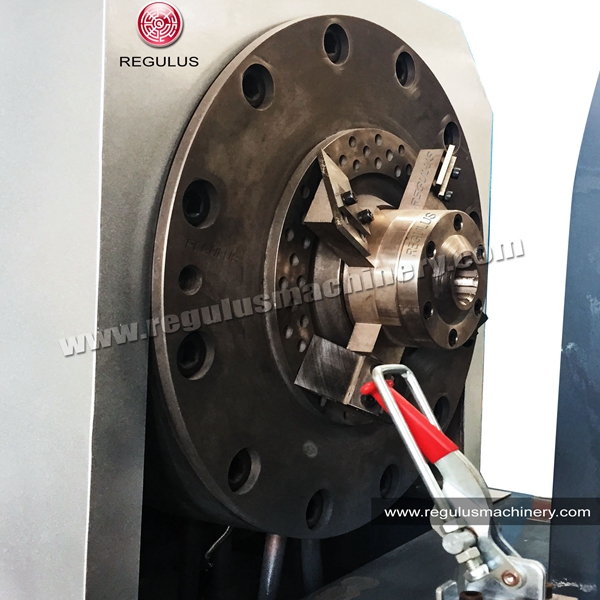

1 | The head part has water cooling and thermocouple temperature control device to ensure the temperature of the head and ensure the plasticizing effect. |
2 | The capacity and temperature can be adjusted within a certain range to meet the needs of different production environments. |
3 | Discharging conveyor matches with split centrifugal fan, greatly prolong the service life of fan. Wind pressure and wind can be adjusted to meet different conveying speed and conveying capacity. |
4 | Split type cylinder can be freely removed and replaced. Compared to the traditional integral machine cylinder, can reduce the user’s replacement and maintenance costs. |
5 | With overload automatic positive and reverse function, effectively avoid material blocking, material plasticizing and other problems. Electrical procedures and upper material delivery are fully linked, to ensure the stability of feeding and discharging. |
6 | Electrical control part all adopts well-known brand electrical components. controlling system takes PLC touch screen with button operation mode, all parameters can be set according to different working conditions and demand free, easy and simple to operate. |
Advantages:
a Low power consumption. Main motor power between 90-110kw, no need to connection
drying pipe system.
b Compare transitional horizontal dewatering machine+drying pipe system, can save
power 40-50%.
c Less area occupancy
d Low rotation speed, almost no noise.
e The plastic squeezing dryer and compactor can greatly increase the subsequent
granulating line production capacity.
What kind waste plastic can be used for Plastic Squeezer Dryer densifying Machine?
Suitable for material: | Soft HDPE film, LDPE film, bags, PP woven bags, PP ton bags |
Function: | Dry/dehydrate/dewatering wet plastic material |
Input wet plastic moisture: | 30% |
Output moisture: | About 3% |
Recyclable waste: Plastic from washing line, Mixed plastics, LDPE HDPE PE PP Film, PE PP bags, raffia, jumbo bags, FIBC bag, RDF, Tetrapak Raw material photos: |
After the Plastic Squeezer Dryer densifying Machine, what will the plastic looks like?
Through our squeezing dryer, washed materials can be squeezed to dehydrate water of films, bags flakes or fluffy stuff. The recycled materials become flakes or lumps . The moisture they contain will be lowered down to 3%. After being squeezed, these lumps or flakes with much lower moisture and higher density can be directly fed into pelletizing extruder.
|
Specification:
| Model | JQ-250L | JQ-300L | JQ-400L |
| Dimension L*W*H(mm) | 2950*1280*2200 | 3150*1320*2380 | 3600*1450*2380 |
| Feeding port height(mm) | 2200 | 2380 | 2380 |
| Screw diameter(mm) | 250 | 300 | 400 |
| Main shaft speed (r/min) | 0-120 | 0-120 | 0-120 |
| Rotor-knives (pcs) | 4 | 4 | 4 |
| Main Motor Power (kw) | 75 | 110 | 180 |
| (PE) Productivity(kg/h) | 250-350 | 450-700 | 700-1000 |
