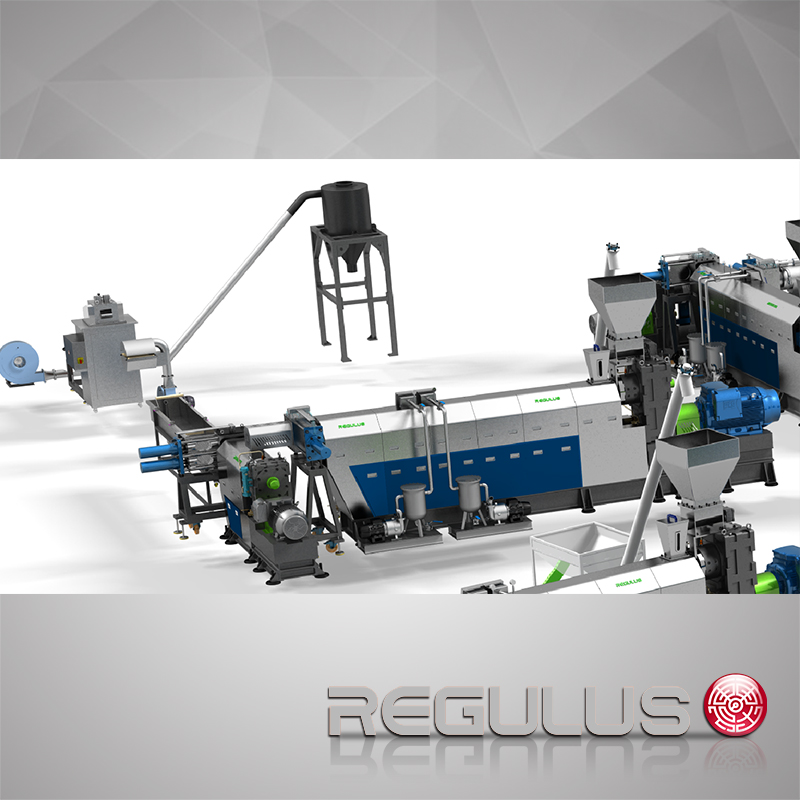

EPS Granulating Pelletizing Line
The plastic granulation and recycling production line is an industrial equipment used for plastic waste
recycling and reuse. It is an integrated system that converts plastic waste into usable pellets that can
be used to produce new plastic products.The granulation pelletizing line is mainly divided into feeding
part, extruder, screen changer, granulating part, particle drying part, and silo.
Application
| Platics | scrap, flakes from plastic PE, PP, PET, PE, PA, EVA, TPU, PS, ABS, BOPP, EPS and etc |
Two stage granulating line:
PET, PP, PS, PE, ABS, HIPS, and more. Suitable for plastic rigid materials, including crushed bottles, crushed
industrial waste.
Force Feeding Two Stages Spaghetti Cutting Recycling Pelletizing Machine
Force Feeding Two Stages Die-Face Cutting Recycling & Pelletizing Machine
Double stage granulation line:
| Model | SJ-90 | SJ-100 | SJ-120 |
| Extruder power(kw) | 55＋22 | 75＋30 | 90＋37 |
| Screw diameter(mm) | 90＋90 | 100＋100 | 120＋120 |
| (PE) Productivity(kg/h) | 150-200 | 200-250 | 250-350 |
| SJ-130 | SJ-160 | SJ-180 |
| 132＋45 | 160＋55 | 250＋75 |
| 130＋130 | 160＋180 | 180＋200 |
| 450-550 | 650-800 | 800-1000 |
Single stage granulating line:
PET, PP, PS, PE, ABS, HIPS, and more. Suitable for rigid materials, including crushed bottles,
crushed industrial waste, and injection materials.
Force Feeding Single Stage Die-Face Cutting Recycling& Pelletizing Machine
Force Feeding Single Stage Spaghetti Cutting Recycling & Pelletizing Machine
| Model | SJ-90 | SJ-100 | SJ-120 |
| Extruder power(kw) | 55 | 75 | 90 |
| Screw diameter(mm) | 90 | 100 | 100 |
| (PE) Productivity(kg/h) | 150-200 | 200-250 | 250-350 |
| SJ-130 | SJ-160 | SJ-180 |
| 132 | 160 | 250 |
| 130 | 160 | 180 |
| 450-550 | 650-800 | 800-1000 |
