Nylon/Yarn/Fiber Agglomerator Densifying Machine
This agglomerator is made by REGULUS machinery company to meet various user needs.
This machine can produce pellets for direct extrusion machines,film blowing machine,
injection molding machine,and also can be feed into extruder granulating.
Application:
Chemical fiber agglomerator machine is suitable for PET PA HDPE PP PVC film yarn, fiber and
filament materials.
Specification:
Model | 300L | 400L | 500L | 600L |

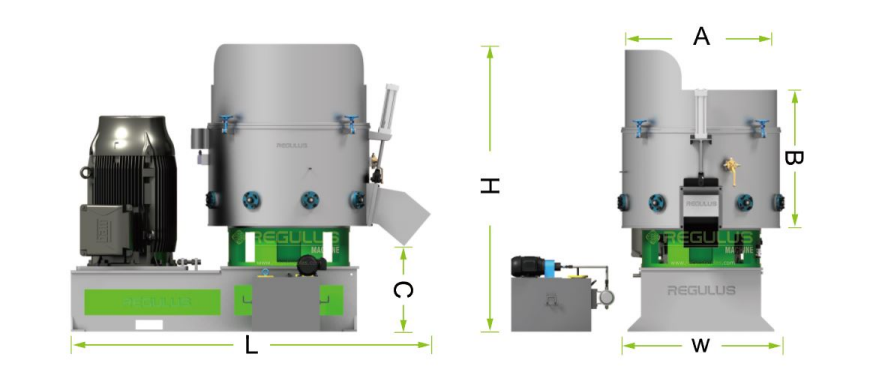

Dimension L*W*H(mm) | 2100*1050*1700 | 2100*1050*1750 | 2450*1200*2040 | 2450*1200*2150 |
Agglomerating Chamber A*B(mm) | 850*860 | 900*900 | 990*960 | 1120*1000 |
Main Shaft Speed(r/min) | 850 | 850 | 750 | 650 |
| Main Motor Power(KW) | 90 | 132 | 160 | 250 |
| Weight(kg) | 2000 | 2300 | 4000 | 4795 |
Features:
| High efficiency: | strong design of double bearing for holding the main shaf,High performance blades ,Water flushing automatically |
High degree of automation: | advanced electric motors and transmission systems with low power and high efficiency |
Stable and reliable | a)The spindle has undergone good heat treatment and finishing b)The inner surface of the pot body and pot bottom is finely polished c)It adopts high-performance mechanical components and structural design |

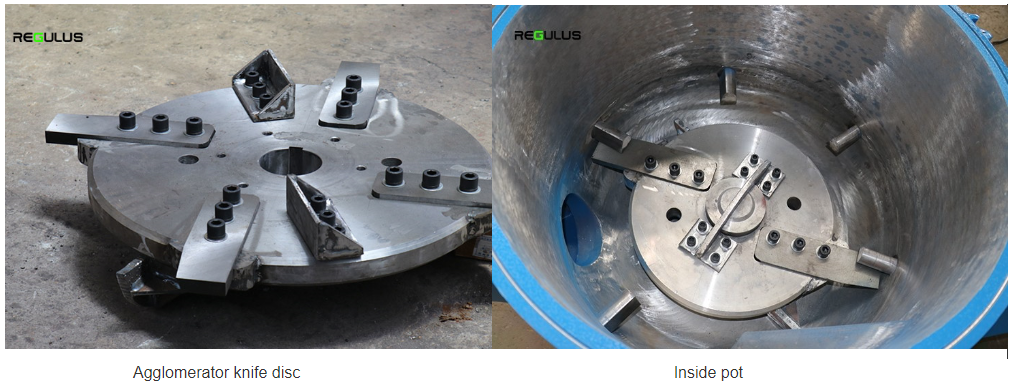

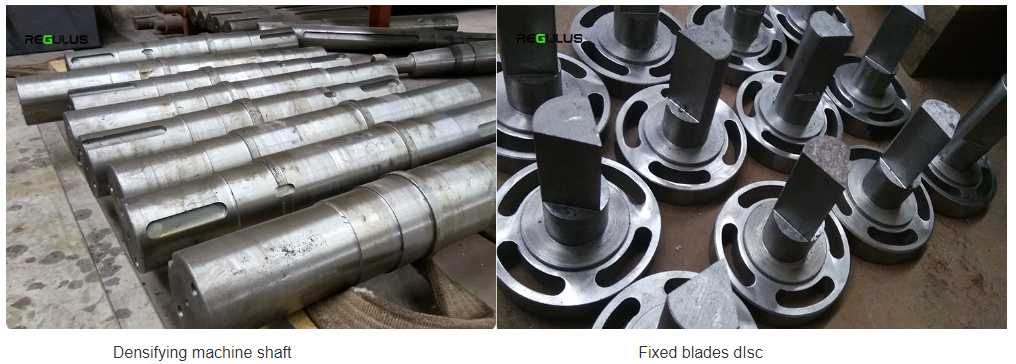

Main Part:
