Shredders for industry and post-consumer plastics recycling
REGULUS Machinery produces a range of various industrial shredder machines. Our industrial shredders are suitable
for a wide range of materials from plastics, electronic waste, tires, wood and various metals. Utilizing twin-shaft shredders,
single-shaft shredders, shredder and crusher 2-in-1 machine, we provide the perfect industrial shredding solution for enterprises.
Pet Bottles Plastic Lumps Plastic Bags
Ton Bags Plastic Films PP PE Pallets
Plastic Baskets and Chairs Plastic Containers PVC Pipes
Final Product:
Single Shaft Shredder:
Suitable for:
1.Plastics:plastic films, plastic bags, plastic bottles, lumps, plastic barrels, plastic pipes, plastic plates, and other general plastics.
2.Paper: hardboard paper, books, document paper
3.Other: home appliance plastic casing, wood
WT22/40 Series Single Shaft Shredder:
| Model | WT2260 | WT4080 | WT40100 | WT40120 | WT40150 |
| Cutting Chamber C/D(mm) | 850*600 | 1300*800 | 1300*1000 | 1400*1200 | 1400*1400 |
| Rotor Diameter (mm) | φ220 | φ400 | φ400 | φ400 | φ400 |
| Main Shaft Speed (r/min) | 83 | 83 | 83 | 83 | 83 |
| Screen Mesh (mm) | φ40 | φ50 | φ60 | φ60 | φ60 |
| Rotor-knives (pcs) | 28 | 40 | 48 | 61 | 78 |
| Main Motor Power (kw) | 22 | 37-45 | 45-55 | 75 | 75-90 |
| Hydraulic Motor Power (kw) | 2.2 | 3 | 3 | 5.5 | 7.5 |
WT48 Series Single Shaft Shredder:
| Model | WT48100 | WT48120 | WT48150 |
| Cutting Chamber C/D(mm) | 1300*1000 | 1400*1200 | 1400*1500 |
| Rotor Diameter (mm) | φ480 | φ480 | φ480 |
| Main Shaft Speed (r/min) | 74 | 74 | 74 |
| Screen Mesh (mm) | φ60 | φ60 | φ60 |
| Rotor-knives (pcs) | 48 | 61 | 78 |
| Main Motor Power (kw) | 45-55 | 75 | 75-90 |
| Hydraulic Motor Power (kw) | 3 | 5.5 | 7.5 |
WTX48 Series Swing Arm Single Shaft Shredder:
Suitable for plastic films of various shapes and sizes, TV casings, tires, plastic sheets, pallets, plastic barrels, paper tubes, lumps, etc. It can be customized according to user requirements.
| Model | WTX48120 | WTX48150 | WTX48200 |
| Cutting Chamber C/D(mm) | 1600*1200 | 1600*1500 | 1600*2000 |
| Rotor Diameter (mm) | φ480 | φ480 | φ480 |
| Main Shaft Speed (r/min) | 74 | 74 | 74 |
| Screen Mesh (mm) | φ60 | φ60 | φ60 |
| Rotor-knives (pcs) | 61 | 78 | 102 |
| Main Motor Power (kw) | 90 | 55-55 | 75-75 |
| Hydraulic Motor Power (kw) | 5.5 | 7.5 | 7.5 |
WTNX48 Series Internal Arm Type-Single Shaft Shredder:
Suitable for soft plastic materials and thin hard materials or hollow hard plastics of various shapes and sizes, such as films, TV casings, plastic sheets, plastic barrels, paper tubes, etc.
| Model | WTNX48120 | WTNX48150 | WTNX48200 |
| Cutting Chamber C/D(mm) | 1870*1200 | 1870*1500 | 1870*2000 |
| Rotor Diameter (mm) | φ480 | φ480 | φ480 |
| Main Shaft Speed (r/min) | 74 | 74 | 74 |
| Screen Mesh (mm) | φ60 | φ60 | φ60 |
| Rotor-knives (pcs) | 61 | 78 | 102 |
| Main Motor Power (kw) | 90 | 55-55 | 75-75 |
| Hydraulic Motor Power (kw) | 5.5 | 7.5 | 7.5 |
WTP40 Series Pipe-Single Shaft Shredder:
Suitable for plastic pipes of various diameters, paper tube.
| Model | WTP2260 | WTP4080 | WTP40100 | WTP40120 | WTP40150 |
| Cutting Chamber C/D(mm) | 600*600 | 800*800 | 1000*1000 | 1200*1200 | 1500*1500 |
| Rotor Diameter (mm) | φ220 | φ400 | φ400 | φ400 | φ400 |
| Main Shaft Speed (r/min) | 83 | 83 | 83 | 83 | 83 |
| Screen Mesh (mm) | φ40 | φ50 | φ60 | φ60 | φ60 |
| Rotor-knives (pcs) | 28 | 42 | 51 | 63 | 78 |
| Main Motor Power (kw) | 22 | 37 | 45 | 55 | 75 |
| Hydraulic Motor Power (kw) | 2.2 | 3 | 3 | 5.5 | 7.5 |

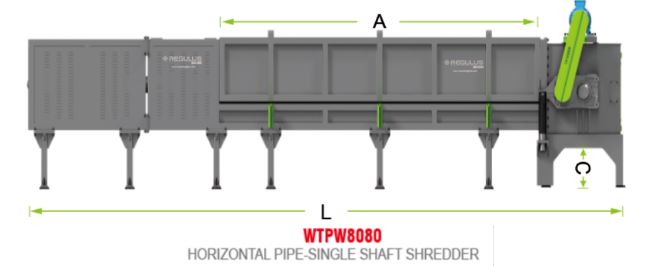

WTPW Series Horizontal Pipe-Single Shaft Shredder:
Suitable for large-diameter, thick-walled plastic pipes.
| Model | WTPW8080 | WTPW120120 | WTPW150150 |
| Cutting Chamber C/D(mm) | 6000*800 | 6000*1200 | 6000*1500 |
| Rotor Diameter (mm) | φ800 | φ1200 | φ1500 |
| Main Shaft Speed (r/min) | 36 | 27 | 23 |
| Rotor-knives (pcs) | 56 | 105 | 130 |
| Main Motor Power (kw) | 37X2 | 45X2 | 55X2 |
| Hydraulic Motor Power (kw) | 11 | 15 | 18.5 |
Double Shaft Shredder:
XYS Series Double Shaft Shredder:
XYS21 Series Small Double Shaft Shredder:
Suitable for thin materials such as computer hard drives, small engineering plastics, home appliances, rubber head materials, etc.
| Model | XYS2140 | XYS2160 | XYS2180 |
| Cutting Chamber C/D(mm) | 421*510 | 621*510 | 821*510 |
| Rotor Diameter (mm) | φ284 | φ284 | φ284 |
| Main Shaft Speed (r/min) | 17 | 15 | 14 |
| Rotor-knives (pcs) | 20 | 30 | 40 |
| Main Motor Power (kw) | 7.5 | 5.5+5.5 | 7.5+7.5 |
| Thickness of Knives(mm) | 20 | 20 | 20 |
XYG Series Double Shaft Shredder:
Suitable for thick, difficult-to-crushing materials such as TVs, washing machines, refrigerator casings, forklift pallets, plastic baskets, tires,blue barrels and metals with a thickness less than 5mm.
| Model | XYG3280 | XYG32100 | XYG32120 | XYG32140 |
| Cutting Chamber C/D(mm) | 831*770 | 1031*770 | 1231*770 | 1431*770 |
| Rotor Diameter (mm) | φ450 | φ450 | φ450 | φ450 |
| Main Shaft Speed (r/min) | 15 | 15 | 15 | 15 |
| Rotor-knives (pcs) | 20 | 25 | 30 | 35 |
| Main Motor Power (kw) | 15+15 | 22+22 | 30+30 | 30+30 |
| Thickness of Knives(mm) | 40 | 40 | 40 | 40 |
| Model | XYG40100 | XYG40130 | XYG40160 | XYG50130 | XYG50180 |
| Cutting Chamber C/D(mm) | 1041*948 | 1321*948 | 1641*948 | 1341*120 | 1841*1206 |
| Rotor Diameter (mm) | φ514 | φ514 | φ514 | φ650 | φ650 |
| Main Shaft Speed (r/min) | 15 | 14 | 11 | 11 | 11 |
| Rotor-knives (pcs) | 25 | 32 | 32 | 26 | 36 |
| Main Motor Power (kw) | 37+37 | 45+45 | 55+55 | 55+55 | 75+75 |
| Thickness of Knives(mm) | 40 | 40 | 50 | 50 | 50 |
WTF Series Double Roller Shredder:
Suitable for soft materials such as films, jumbo bags, woven bags and cloth.
| Model | WTF4080 | WTF40100 | WTF40120 |
| Cutting Chamber C/D(mm) | 800*1000 | 1000*1000 | 1200*1000 |
| Rotor Diameter (mm) | φ400 | φ400 | φ400 |
| Main Shaft Speed (r/min) | 74 | 74 | 74 |
| Rotor-knives (pcs) | 54 | 66 | 84 |
| Screen Spacing(mm) | 70 | 70 | 70 |
| Main Motor Power (kw) | 45+45 | 55+55 | 75+75 |
