ENGLISHPlastic Shredder andGranulator 2 in 1 machine

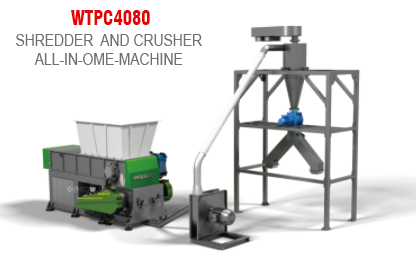

Design of Plastic Shredder andGranulator 2 in 1 machine
a. Single shaft shredder and granulator are built together.
b. Waste plastic shredder and crusher in one machine has two parts in one machine.
The first part is shredding part on the top.
The second part is crushing parts, which is under the shredding part for fine crushing.
c. End product is 8-16mm particle materials.
d. After shredding, the shredding material goes into crusher machine directly.
Through this shrdedding crushing 2-in-1 machine, customer no need
to buy belt conveyer between shredder and granulator, so it can save cost
and save space.
Features of Plastic Shredder andGranulator 2 in 1 machine
Waste plastic shredder and crusher in one machine has the following characters :
a | Save time shredding and crushing function on one machine. Discharged particle materials size can be reused directly |
b | Save space, save cost. Shredder, crusher and storage system are combined into one machine. |
c | Main shaft is driven by gear reducer , big torque , steady working and low noise |
d | Hydraulic feeding mechanism , independent power unit , strong frame structure |
e | D2 blades for efficient working and long using life Material strength will decrease sharply after shredding, lower crusher stress, which can improve knife service life. |
f | Hydraulic system with water cooling design |
g | electrical cabinet with Siemens PLC control system. Auto control for co-rotation and reversal Auto protection while over-load The machine realize stable and safe working by automaic control of shredder, crusher and storage efficiency |
h | The whole system meets the CE safety standard. |
Application of Plastic Shredder andGranulator 2 in 1 machine
The Plastic Shredder and Granulator 2 in 1 machine is an efficient recycling machine
for recycling different kinds of waste plastics.
For example, plastic lumps from injection or extrusion machine, plastic pipes,
plastic bottles, plastic baskets, barrel, big block material, plastic container,
plastic chair, plastic pallet, woven bags, jumbo bags, plastic shells of household
appliances(e.g. TV, computer, refrigerator, washer machine,etc).
By equipped with different blades and driving system, the waste plastic shredder
and crusher in one machine can be also used for wood, cardboard, copper cables etc.
Main Technical parameter:
| Model | WTPC2260 | WTPC4060 | WTPC4080 | WTPC40100 |
| Dimension L*W*H(mm) | 1870*1420*1790 | 2300*1720*2000 | 2750*1970*2000 | 2800*1950*2100 |
| Cutting Chamber A*B(mm) | 850*600 | 1150*600 | 1300*800 | 1300*1000 |
| Cylinder Stroke(mm) | 500 | 700 | 850 | 850 |
| Rotor Diameter (mm) | φ220 | φ400 | φ400 | φ400 |
| Main Shaft Speed (r/min) | 83 | 83 | 83 | 83 |
| Screen Mesh (mm) | φ40 | φ50 | φ50 | φ60 |
| Rotor-knives(pcs) | 28 | 40 | 40 | 48 |
| Stator-knives(pcs) | 2 | 2 | 2 | 2 |
| Main Motor Power(kw) | 22+15 | 30+22 | 37+30 | 45+37 |
| Hydraulic Motor Power (kw) | 2.2 | 2.2 | 3 | 3 |
| Crusher Knife rotation diameter(mm) | 320 | 420 | 420 | 420 |
| Crushing Rotor-knives(pcs) | 18 | 18 | 24 | 30 |
| Crushing Stator-knives(pcs) | 2 | 2 | 2 | 2 |
| Screen aperture(mm) | 14 | 14 | 14 | 14 |
| Fan power(kw) | 2.2 | 3 | 4 | 5.5 |
| Weight(kg) | 2800 | 3800 | 4700 | 5500 |

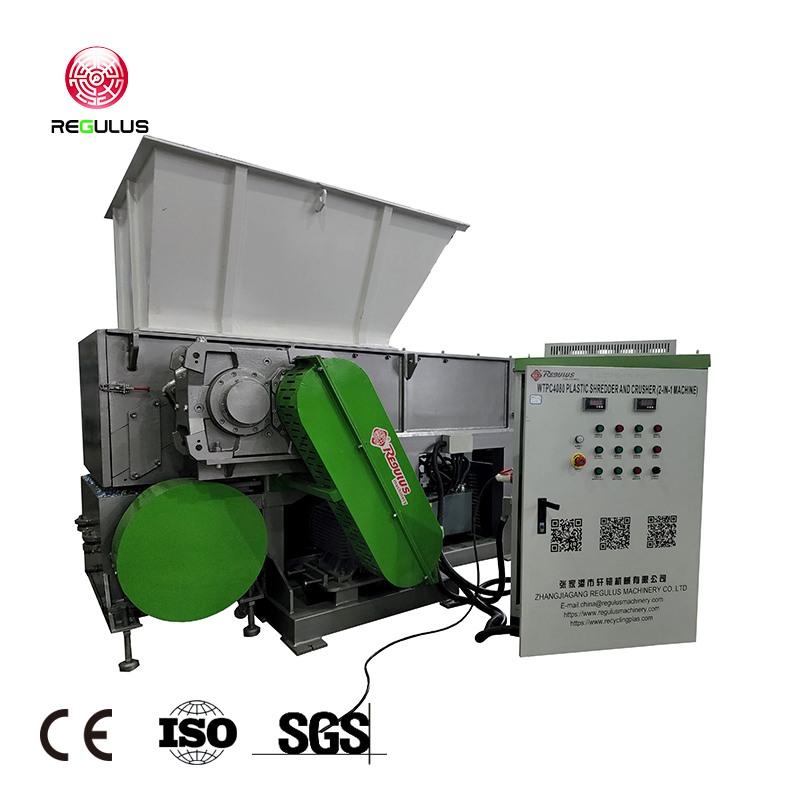

Detailed Photos
 |  |
 |  |
 |  |
