Capacity

(kg/h)

Power Installed

(kw)

Required Area

(m2)

Manpower

Steam Volume

(kg/h)

Water Supply

(m3/h)

500

220

400

8

350

1

1000

500

750

10

500

3

2000

700

1000

12

800

5

3000

900

1500

12

1000

6

4500

1000

2200

16

1300

8

6000

1200

2500

16

1800

10

Bales opener/bale breaker:

The bale breaker is driven by motors with slow rotation

speeds.

The shafts are provided with paddles that break the

bales and allow the bottles to fall without breaking.

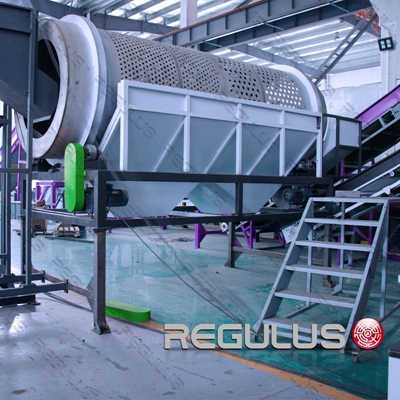

Dry separation/ Trommel:

This machine allows the removal of many of the solid

contaminants (sand, stones, etc.), and represents the first dry cleaning

step of the process.

It is an optional piece of equipment, the trommel is a

slowing rotating tunnel lined with small holes.

The holes are slightly smaller than the PET bottles,

so small pieces of contamination(such as glass,

metals, sand, stones, etc.) can fall through while the

PET bottles move onto the next machine

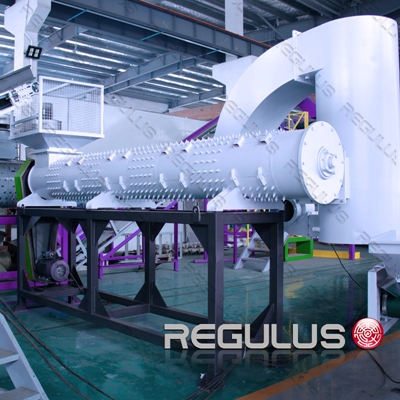

Label remover/ Delabeler:

REGULUS has designed and developed a system that can easily open

 the sleeve labels without breaking the bottles and

 saving most of the bottles necks.

The bottle material is input from the feeding port by the

conveyor belt.

When the blade welded on the main shaft has a certain

 included angle and spiral line with the center line of the

main shaft, the bottle material will be transported to the

discharge end, and the claw on the blade will peel off the label

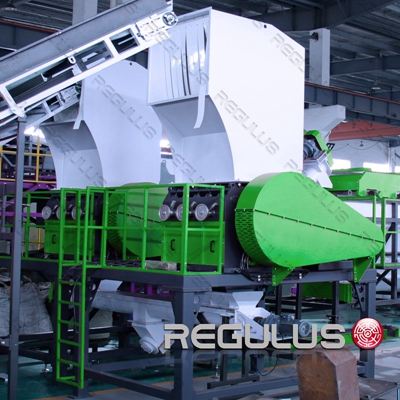

Plastic granulator/wet grinding:

Through the granulator, PET bottles are cut into smaller pieces to achieve

the required size distribution for the washing sections

that follow.

Normally, crushing flakes size between 10-15mm.

At the same time, with water constantly spraying into

the cutting chamber, a first washing process is

performed in this section, eliminating the worst

contaminants and preventing them from entering

the downstream washing steps.

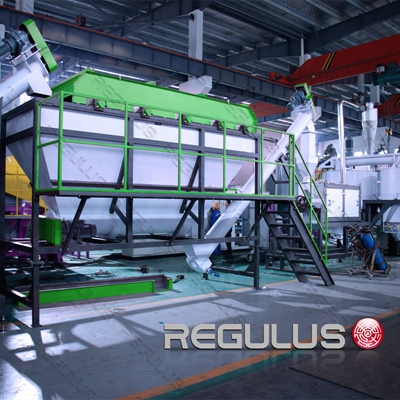

Washer tank/ Sink and float separation:

The target of this section is to remove any polyolefins

(polypropylene and polyethylene labels and closures)

and other floating material and to conduct a secondary

washing of the flakes. The heavier PET material will sink

to the bottom of the flotation tank, from where it is removed.

A screw conveyor at the bottom of the sink float separation

tank moves the PET plastic to the next piece of equipment.

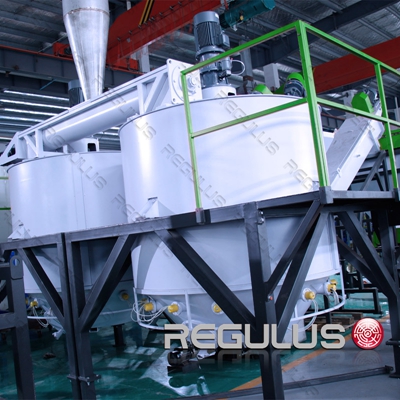

Hot Washer System:

Hot washed PET flakes are of higher value because this

process dissolves glues(used to glue labels onto the

bottles) and leftover beverages/foods that are difficult

to remove in a cold wash process. Although you can

just use water in the hot washer system,

adding washing agents can added for better results

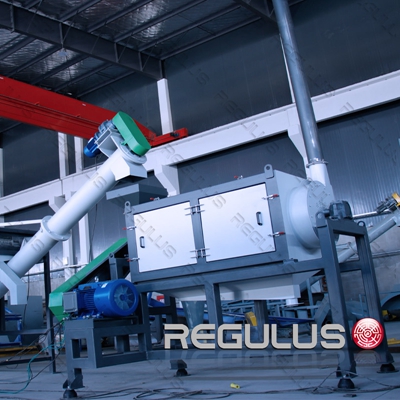

Dryer:

Centrifugal dewatering machine:

Initial mechanical drying through a centrifuge allows the removal of water

deriving from the final rinsing process.

Thermal dryer:

The PET flakes are vacuumed out of the dewatering machine into thermal dryer,

where it travels down a series of stainless steel tubes mixed with hot air.

So the thermal dryer properly treats the flakes with time and temperature

to remove surface moisture.

Fines separation/Dust remover:

It is an elutriation system, which is used to separate

remaining labels, having dimensions close to those of the

rPET flakes size, as well as PVC, PET film, dust and fines.

Product silo:

A stotage tank for the clean and dry PET flakes.

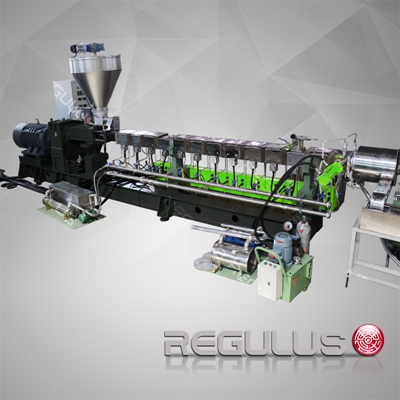

PET flakes pelletizing machine:

For the most part, PET flakes are used to produce using product directly.

There are also some customers requiring plastic pelletizing machines.

For more information see our plastic pelletizing line.
