1. Usages of Plastic PP bags squeezing dryer and compactor
The plastic squeezing dryer and compactor is especially suitable for soft plastics dewatering and drying, such as films and woven bags. The plastic squeezing dryer and compactor is developped based on the film squeezing dryer machine. This machine has both drying and compacting function. The plastic squeezing dryer and compactor can be used after plastic washing line. And it can also used to dry wet plastic separately.
After washing/cleaning the waste plastic film, bags, the plastic film, bags moisture is usually retain more than 30%. So our team developed a squeezer to meet customers' needs. Through this machine, water and volume of the materials can be squeezed to increase the quality of the pellets and the efficiency of the extruders.
2. Advantages of Plastic PP bags squeezing dryer and compactor:
Compared with the traditional way of centrifugal dryer and hot air pipe dryer, the new plastic squeezing dryer and compactor with advantages of less area occupancy, low energy compution, low noise, high efficiency drying.
1 | Low power consumption. Main motor power between 90-110kw, no need to connection drying pipe system. Compare transitional horizontal dewatering machine+drying pipe system, can save power 40-50%. |
2 | Less area occupancy, |
3 | Low rotation speed, almost no noise. |
4 | Dewatering function is better, final products humidity less then 3%. |
5 | The plastic squeezing dryer and compactor can greatly increase the subsequent granulating line production capacity. |
3. Structure of Plastic PP bags squeezing dryer and compactor:

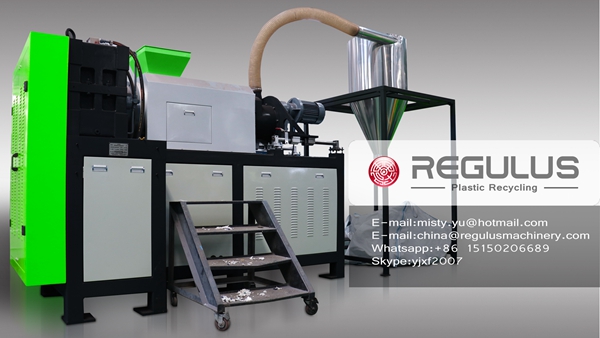

The plastic squeezing dryer and compactor consists of main motor, gear box, barrel, screw, die head, pellets cutter, blower, silo, electric control cabinet.
4. Working principle of Plastic PP bags squeezing dryer and compactor:

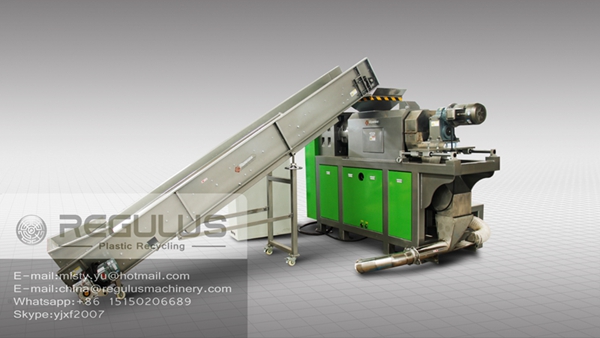

The wet plastic pieces were fed into squeezing dryer and compactor screw through conveyor, then motor driven through screw forward, plastic material pass through the high-strength die, then to the pelletizing device. Final product is semi-plasticized granules, which can be sold directly or fed into extruder screw for secondary granulating pelletizing directly.
Note:
The product line can be made to spec meeting customer needs. |
Equipment specifications are also constantly updated. You are welcomed to contact us for details. |
5. Video of Plastic PP bags squeezing dryer and compactor:
About Regulus Machinery company
Regulus company is a professional manufacturer of plastic recycling machine and plastic extruder in China. Regulus company has nearly 30 years experience in plastic machine.
