SWINGING ARM SINGLE SHAFT SHREDDER
I. APPLICATIONS:
| Plastics | PP PE HDPE LDPE LLDPE plastic sheets, pallets, plastic barrels, general purpose plastics for injection molding, extrusion, film blowing, etc |
| Waste appliances | TV casings, washing machines casings, refrigerators casings, etc |
| Chemical fiber | carpet, glass fiber products |
| Paper | domestic waste, industrial waste |
| Wire and cable | wire, PE HDPE pipe |
plastic blue barrel plastic chair
plastic sheet plastic film and bag
II. TECHNICAL FEATURES
a It has efficient tearing ability, provides high shear force and ensures high crushing yield
b High speed swing arm pushing system to maximize output
c Install the shock absorber so that it tears smoothly
d Hard tooth surface reducer is adopted, which is safe and stable,
equipped with water cooling function
e Independent control electric box, Siemens PLC control
f The whole system meets the CE safety standard
III. TECHNICAL PARAMETERS

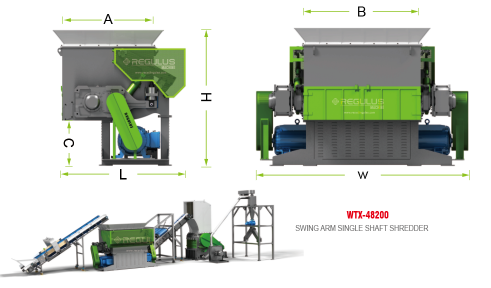

WTX48 Series Swing Arm Single Shaft Shredder:
| Model | WTX48120 | WTX48150 | WTX48200 |
| Dimension L*W*H(mm) | 2740*3700*2700 | 2740*4180*2700 | 2740*4720*2700 |
| Cutting Chamber A*B(mm) | 1600*1200 | 1600*1500 | 1600*2000 |
| Height of discharge port(mm) | 650 | 650 | 650 |
| Cylinder Stroke(mm) | 550 | 550 | 550 |
| Rotor Diameter (mm) | φ480 | φ480 | φ480 |
| Main Shaft Speed (r/min) | 74 | 74 | 74 |
| Screen Mesh (mm) | φ60 | φ60 | φ60 |
| Rotor-knives (pcs) | 61 | 78 | 102 |
| Stator-knives(pcs) | 3 | 4 | 4 |
| Main Motor Power (kw) | 90 | 55-55 | 75-75 |
| Hydraulic Motor Power (kw) | 5.5 | 7.5 | 7.5 |
| Weight(kg) | 6500 | 8500 | 10500 |
WTNX48 Series Internal Arm Type-Single Shaft Shredder:
| Model | WTNX48120 | WTNX48150 | WTNX48200 |
| Dimension L*W*H(mm) | 2500*2510*2500 | 2500*4180*2700 | 2500*4720*2700 |
| Cutting Chamber A*B(mm) | 1870*1200 | 1870*1500 | 1870*2000 |
| Height of discharge port(mm) | 650 | 650 | 650 |
| Cylinder Stroke(mm) | 330 | 330 | 330 |
| Rotor Diameter (mm) | φ480 | φ480 | φ480 |
| Main Shaft Speed (r/min) | 74 | 74 | 74 |
| Screen Mesh (mm) | φ60 | φ60 | φ60 |
| Rotor-knives (pcs) | 61 | 78 | 102 |
| Stator-knives(pcs) | 3 | 4 | 4 |
| Main Motor Power (kw) | 90 | 55-55 | 75-75 |
| Hydraulic Motor Power (kw) | 5.5 | 7.5 | 7.5 |
| Weight(kg) | 6200 | 8300 | 10000 |
IV. Sales Service
1. Pre-sale: our REGULUS company give customer the shredder detail technician offer, 24 hours online response.
2. In-sale: our REGULUS company supply the shredder layout, installation, technical support.
Running the shredder machine before delivery.
After customer’s acceptance,we arrange the related machine delivery rapidly, provide detailed packing list
and related documents for customers' customs clearance.
3. After sales: we arrange our experienced engineer to install the machinery and training
the workers for customer in customer factory.
4. We have 24 hours team to support the after-sales service
5. We have free spare parts with the machine when we deliver the machine.
We supply long-term spare parts for every customer with cost price
6. We always update the new technology to every customer
