ENGLISHSWP Series Plastic Pipes, Profiles Crusher Machine
SWP Series Crusher is mainly used forcrushing PVC pipe, PVC profile, PPR pipe,
PE pipe, and plastic door & window,plastic sheet.
It is a new kind of breaking machine used for breakingplastic profiled material
with large hardness and tenacity.
APPLICATION

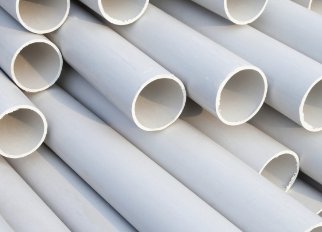

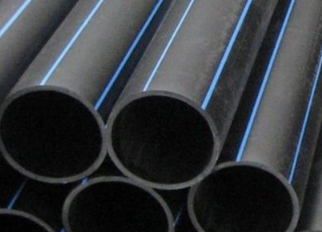

PVC Pipes HDPE Pipes

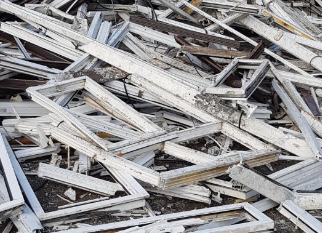

Plastic Window Frame PVC Profiles
SPECIFICATION
SWP Series Crusher Machine
SWP series crusher is used to crush shredded head materials, pipes,
plastic objects with a wall thickness of less than 10 mm, etc.
Model | SWP400 | SWP500 | SWP600 |
Dimension L*W*H(mm) | 2200*900*1800 | 2200*1050*2100 | 2400*1300*2300 |
Cutting Chamber A*B(mm) | 400*400 | 500*500 | 600*660 |
Feeding port height C(mm) | 1500 | 1600 | 1800 |
| Rotor Diameter(mm) | Φ400 | Φ500 | Φ660 |
| Main Shaft Speed(r/min) | 462 | 415 | 415 |
| Screen Mesh(mm) | Φ14 | Φ14 | Φ14 |
| Rotor-knives(PCS) | 12 | 15 | 18/6 |
| Stator-knives(PCS) | 2 | 2 | 2/4 |
| Main Motor Power(KW) | 15/22 | 22/30 | 45/55 |
| Weight(kg) | 1500 | 1900 | 2800 |
FEATURES
🔹. Strong structure, easy to operate, low electricity consumption
🔹. Uses high quality steel material especially for making knives of the crushers,
the machine stands long use under severe and continuous service conditions.
🔹. The blades can be grinded for many times and can be used repeatedly.🔹. Blades base is made of high quality steel, hard to be broken and damaged.
Blades base structureis stable and durable.
