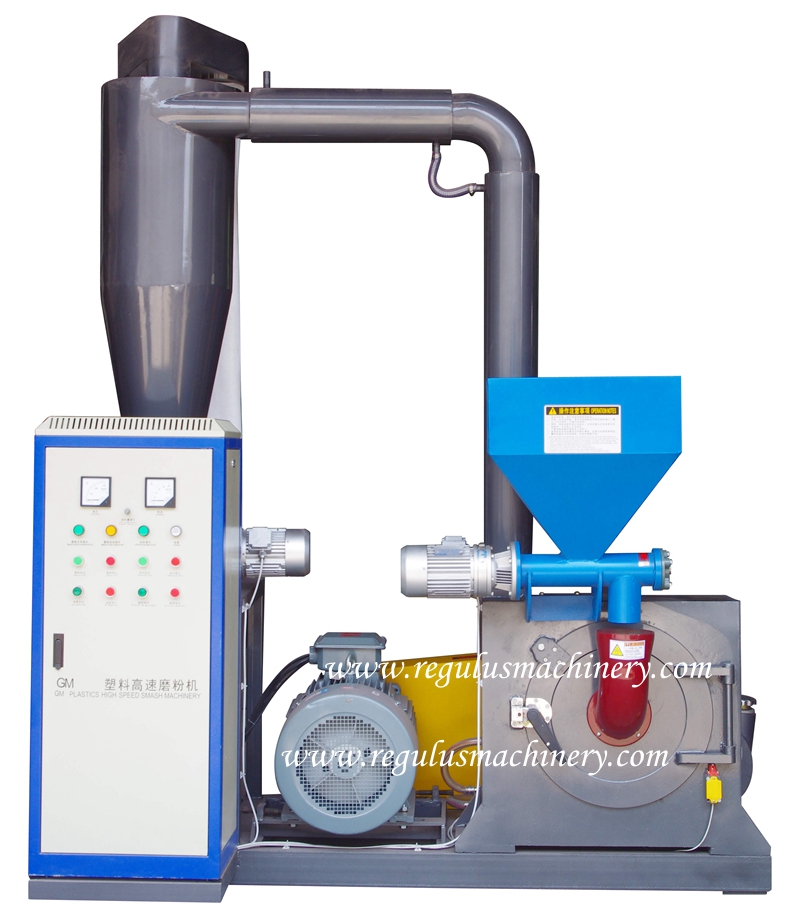

ENGLISHPVC Pulverizer Grinding Machine
PVC grinding machine is specially designed for PVC materials. It can efficiently grind PVC particles or waste into
fine powder, ensuring the powder fineness is uniform and stable to meet different production needs.
Application:
This machine is mainly used in the field of rigid PVC recycling, such as the recycling of defective products and
leftover materials of PVC pipes, profiles, plates.
crushed pvc pipes PVC sheet

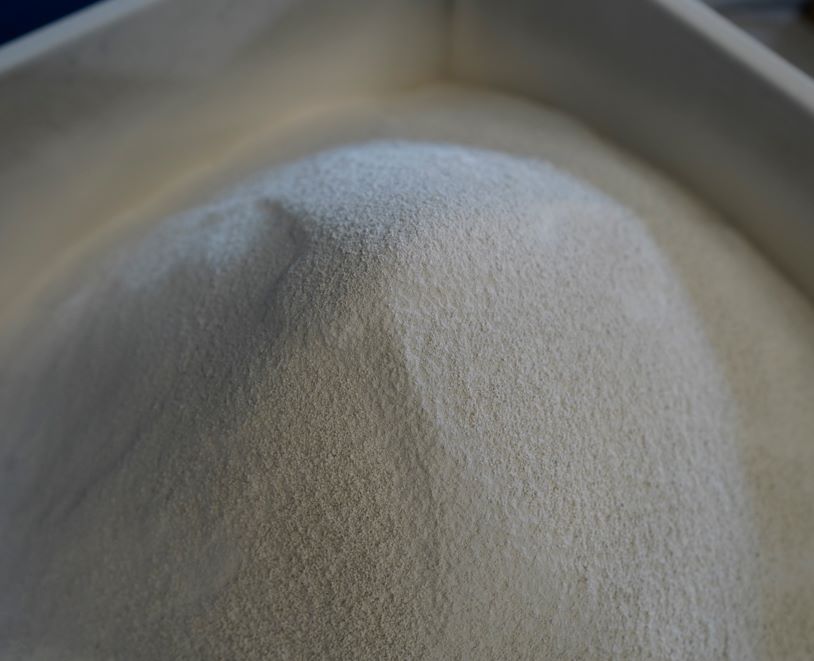

Final Product:
Features:
a. The capacity of this model is higher than other kind of miller.
b. Equipped with dust collection device to reduce dust pollution.
c. Close blower for discharge can reduce labor intensity of worker and save money for clients.
d.The cover of main machine can be opened for maintain.
e.The cooling system include the water and wind cooling for the machine body.
f. Low consumption, High output, Low noise.
g. Simple structure is simple, easy to install, operate, maintenance.
Specification:
| Model | SMF-500 | SMF-600 | SMF-800 |
| Dimension L*W*H(mm) | 3350*1600*3500 | 3450*1600*3500 | 3600*1800*4000 |
| Feeding port height H(mm) | 850 | 900 | 1100 |
| Rotor diameter(mm) | 500 | 600 | 800 |
| Main shaft speed (r/min) | 3800 | 3800 | 3700 |
| Main Motor Power (kw) | 37/45 | 45/55 | 75/90 |
| Weight(kg) | 1800 | 2200 | 3100 |
| (PE) Productivity(kg/h) | 150-200 | 300-350 | 450-500 |
