ENGLISHHot Sale New Set PP PE HDPE PS EPS Agglomerator Machine Densifier Machine Compactor Machine
This agglomerator is made by REGULUS machinery company to meet various user needs. This machine can produce pellets for direct extrusion machines, film blowing machine, injection molding machine, and also can be feed into extruder granulating.
The agglomeration machine can be used for a wide range of raw materials, such as plastic PE film, HDPE foil, LDPE film, PE bags, PP woven bags, PP non-woven, PP raffia, plastic sheet, flakes, fiber, PS, EPS and other soft plastics.
Application:
Final Products:
Working Process:
the waste plastic is supplied into the chamber
→ cut into smaller chips (due to the rotating knife and fixed knife)
→the material that soaked up lots heat from the frictional movement of material being crushing and the wall of container
→ become semi-plasticizing state
→The particles will stick with each other due to the function of plasticization
→Before it sticks each other completely, the cold water pre-prepared is sprayed into the material being crushed
→ the surface temperature of material being crushed drop down quickly
→ the material being crushed will become small particles or granules.

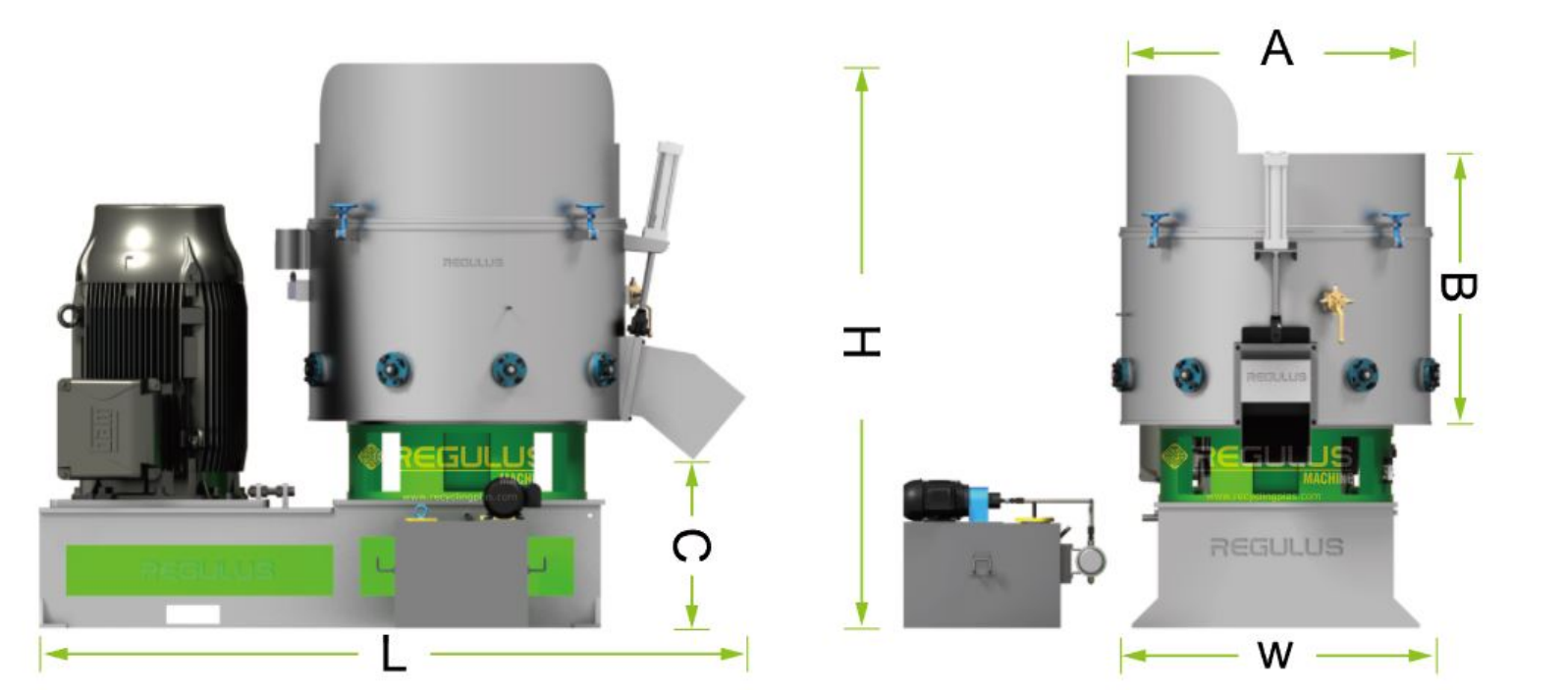

Specification:
GSL Small Agglomerator Machine
Model | 100L | 200L | 300L |
Dimension L*W*H(mm) | 2000*950*1500 | 2000*1050*1500 | 2200*1050*1600 |
Agglomerating Chamber A*B(mm) | 680*800 | 760*800 | 800*860 |
Main Shaft Speed(r/min) | 1050 | 1050 | 950 |
| Main Motor Power(KW) | 37 | 45 | 55 |
| Weight(kg) | 1000 | 1200 | 1800 |
GSL Ordinary Agglomerator Machine:
Model | 500L | 600L | 800L | 1000L | 1500L |
Dimension L*W*H(mm) | 2400*1060*2040 | 2400*1060*2100 | 2500*1300*2100 | 2600*1400*2180 | 2750*1500*2340 |
Agglomerating Chamber A*B(mm) | 960*960 | 990*1000 | 1230*1000 | 1300*1100 | 1400*1260 |
Main Shaft Speed(r/min) | 850 | 750 | 650 | 650 | 650 |
| Main Motor Power(KW) | 75 | 110 | 132 | 160 | 250 |
| Weight(kg) | 3500 | 3850 | 4500 | 4950 | 5500 |
